It is suitable for fragile, grain and abnormal products, such as biscuits, potato chips, IQF foods, nuts, candy, tea, rice, sugar and any kind of snacks etc.
| Model | UPO-420 | UPO-520 | UPO-720 |
| Film Width | Max 420mm | Max 520mm | Max 720mm |
| Bag Size |
L: 60-300mm; W: 65-200mm |
L: 80-400mm; W: 90-250mm |
L: 100-500mm; W: 115-350mm |
| Speed | 15-50 bags/min | 15-50 bags/min | 10-35 bags/min |
| Capacity | 10-1000ml | 100-2000ml | 1000-5000ml |
| Power | 220V, 50-60Hz, 2.2kw | 220V, 50-60Hz, 2.5kw | 220V, 50-60Hz, 3kw |
|
PLC and touch screen control. |
Date printer and feed system synchronous working together. |
|
Photo-eyes automatic track marks. |
Fast bag-former change, no tools required. |
|
The parts contacting material are stainless steel. |
Full stainless steel machines are optional. |
|
Economic, High speed and Ultra-large machines can be chosen. |
|
|
★ PE single film sealing device ★ Tear notch ★ Air expeller ★ Gas injection (Air or Nitrogen) ★ Vacuum device ★ Material stopper ★ Hole punch device ★ Gusseted-bag device ★ Hot pressing for 4 edges of gusseted standing bag ★ Bag support ★ Static eliminator ★ Automatic film tracking device |
OPTION EQUIPMENTS

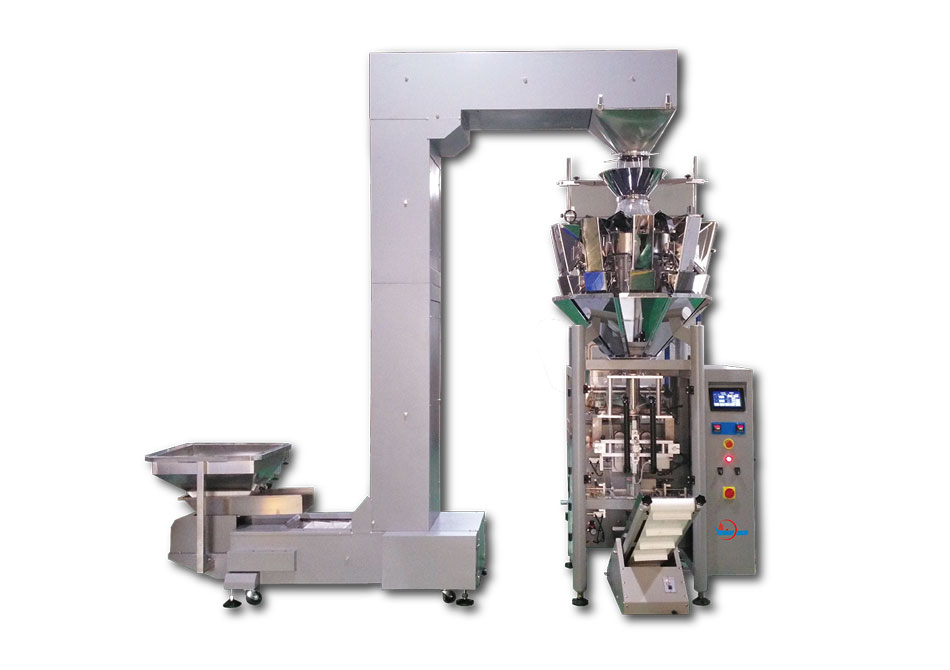

Full Set Includings：

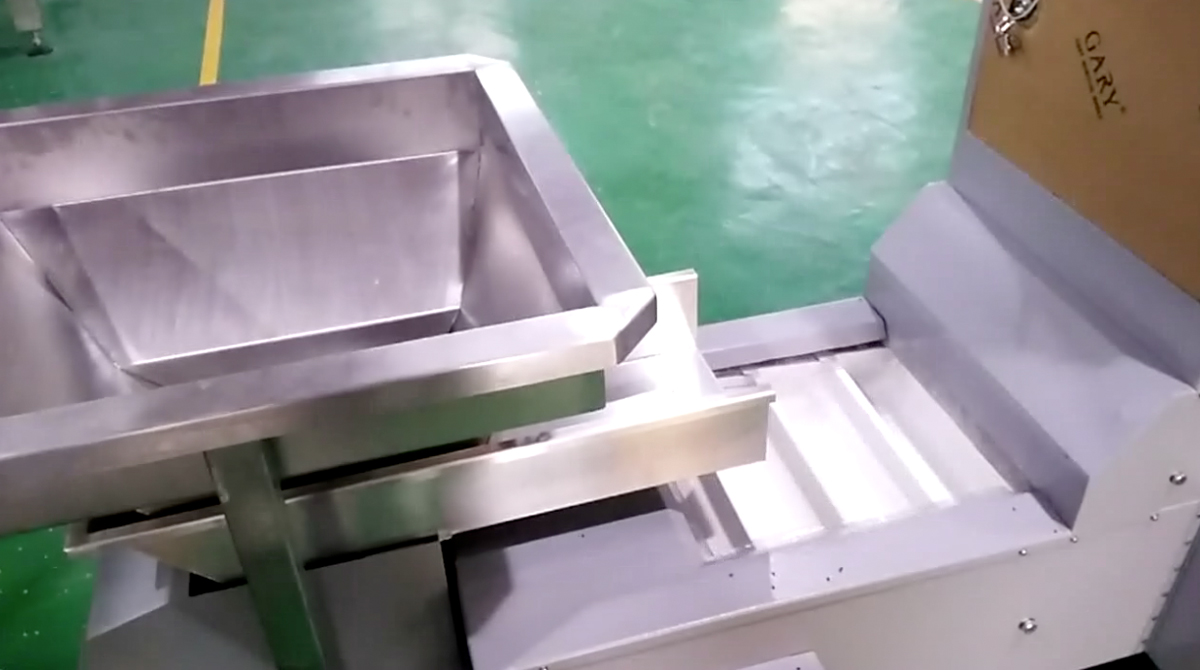

1, Vibration feeder
2, Material conveyor

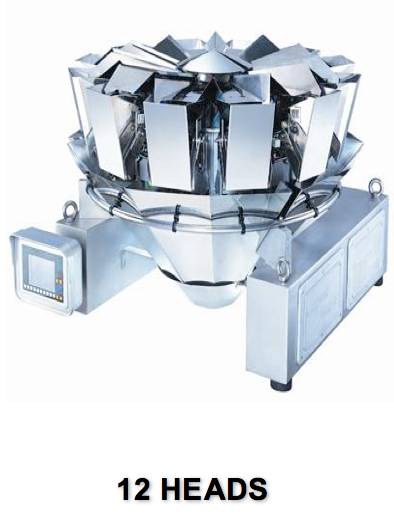

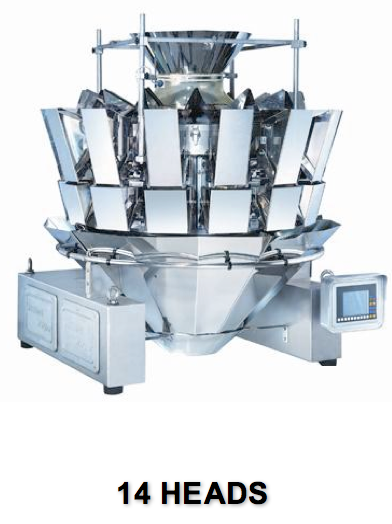

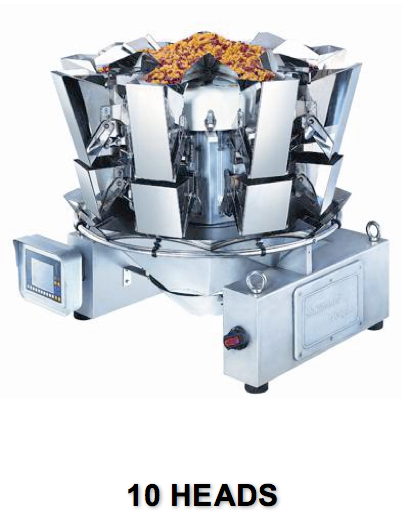

3, Multi-head weigher
4, Vertical packing machine with date printer or themal transfer printer
5, Output belt
6, Options: Check weigher, Metal detector, Rotary collection table
