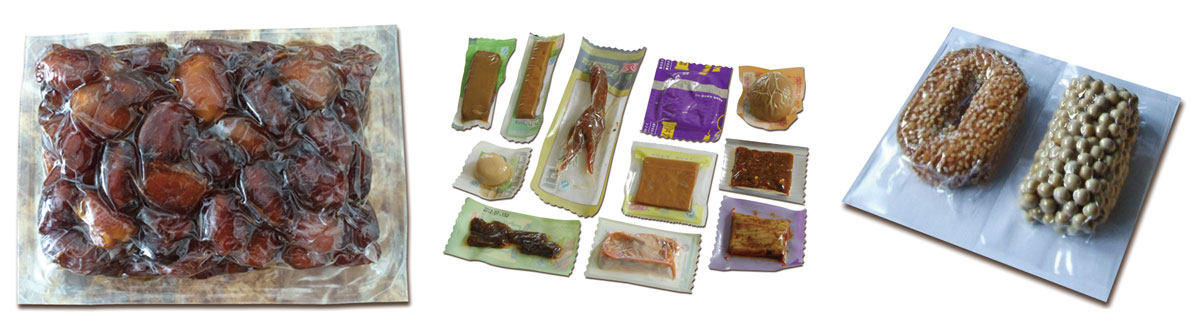

This machine is applied to anti-corrosion and moisture-proof vacuum packaging of food, medicine, electronics, etc.
| Work capacity | 200-400 times/hour |
| Packaging Material |
Vacuum stretched composite film, up film width 400-500mm, low film width 420-520mm, inner bore 70mm |
| Max Forming Cavity Dimension | 475x480x50mm (L*W*H) |
| Overall Dimension | 7600x1100x1900mm(L*W*H) |
| Total Power | 380/220V 50-60Hz 55kw |
| Air Pressure | 0.5-0.7Mpa, 0.3m³/min |
| Vacuum Exhaust Capacity | 160m³/h~200m³/h |
| Weight | 2500kg |
|
Adopt with full set Mitsubishi HMI, PLC and servo control system. With easier operation, higher precision and lower failure rate. |
|
Optical tracking system adopt imported three color sensor, which can sense all colors and output strong signal. Make sure to use color film, which can align with bottom film’s form area. |
|

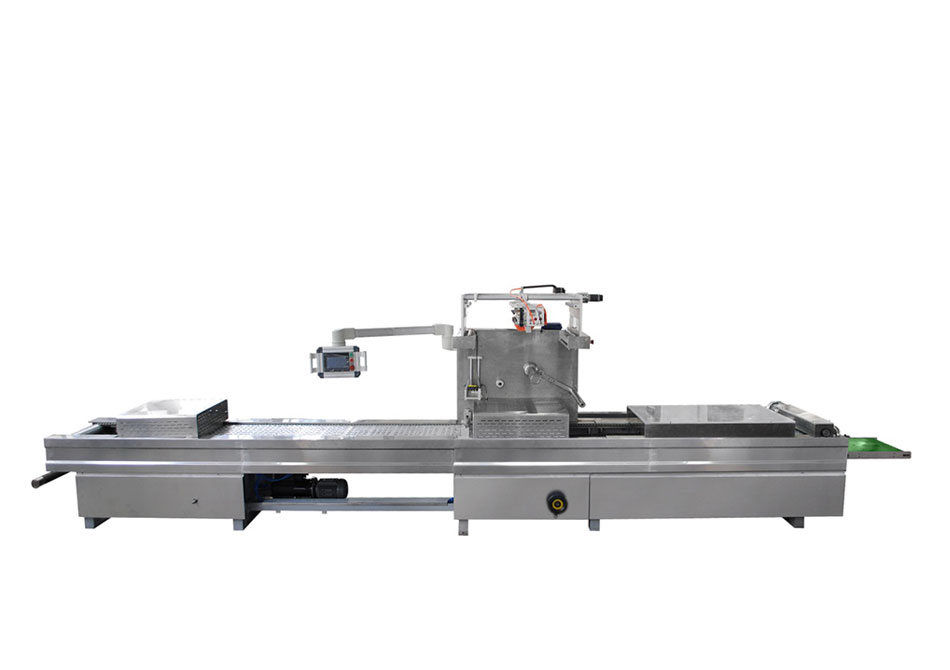

The whole machine adopts frame structure. All materials are assembled by food grade 304 stainless steel and aluminum. |
|
Adopt high quality stainless steel chain and film clamp drive system. Ensure film clamp’ clamming force, drive effectiveness and service life. |
|
Pneumatic parts adopt original air TAC solenoid valves and cylinders. Key parts adopt Japan SMC pneumatic components. |
