AUTOMATIC / SEMI-AUTOMAITC LIQUID / PASTE FILLING MACHINERY
-

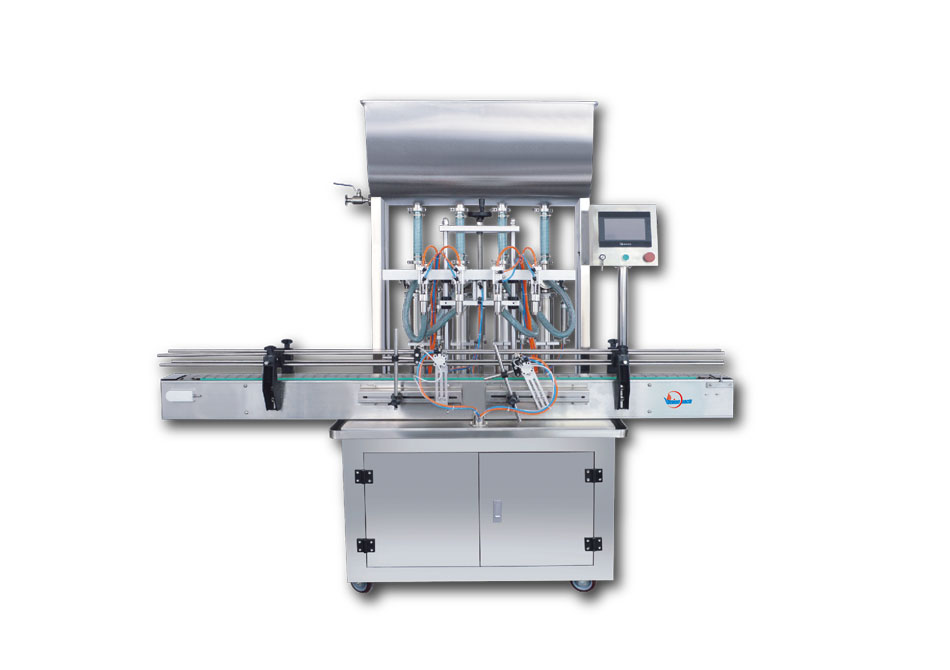

UPYG1000-4D AUTOMATIC LIQUID / PASTE FILLING MACHINE(100-1000ml, 4-HEAD)
-

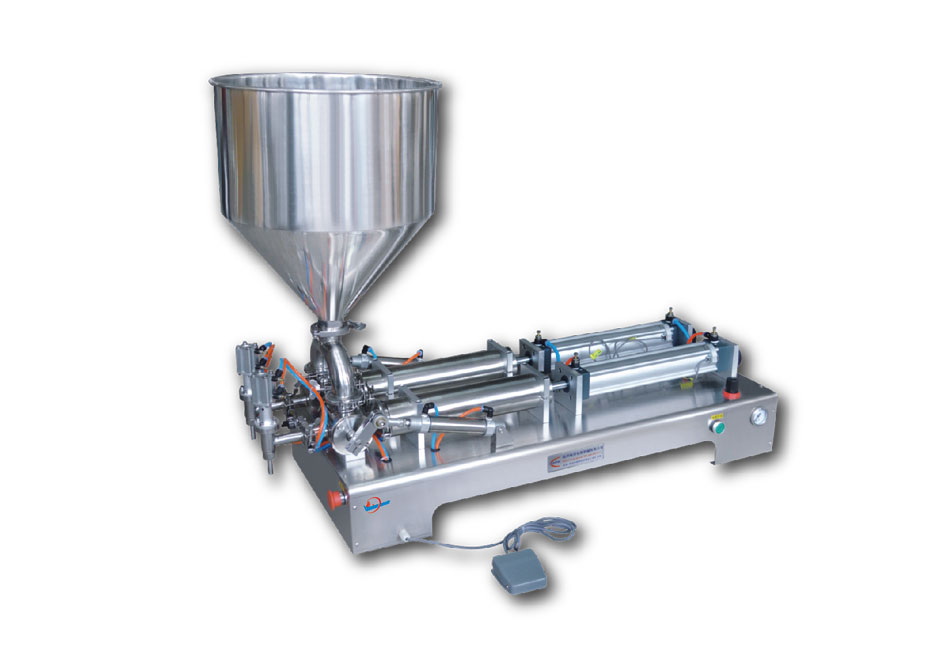

H2UPG100-5000 HORIZONTAL PASTE FILLING MACHINE (Double Heads)
-

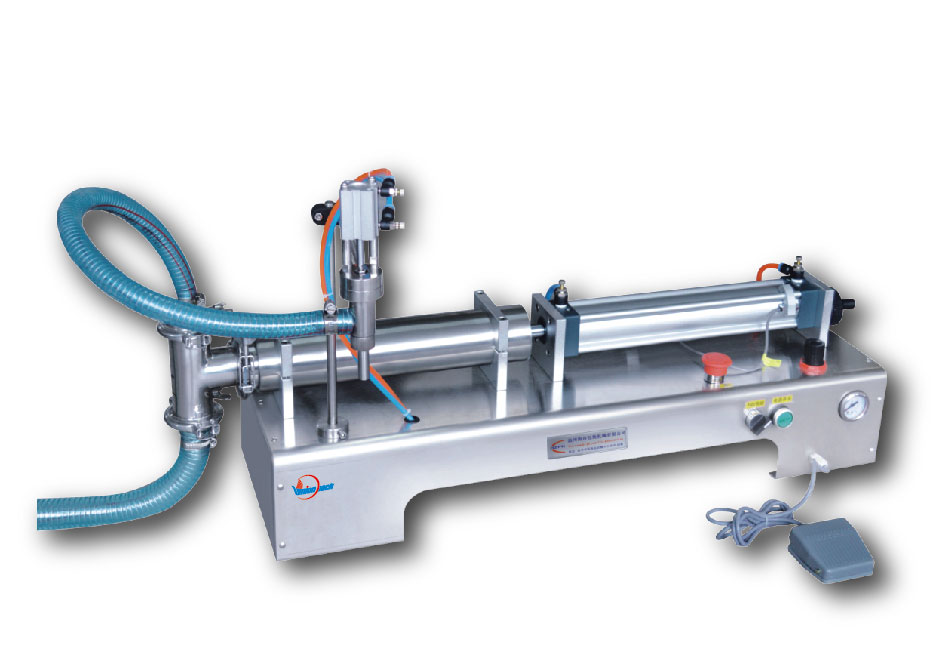

H1UPY100-5000 HORIZONTAL LIQUID FILLING MACHINE (Single Head)
SAMPLES
Samples for Filling, Capping, Labeling Machine

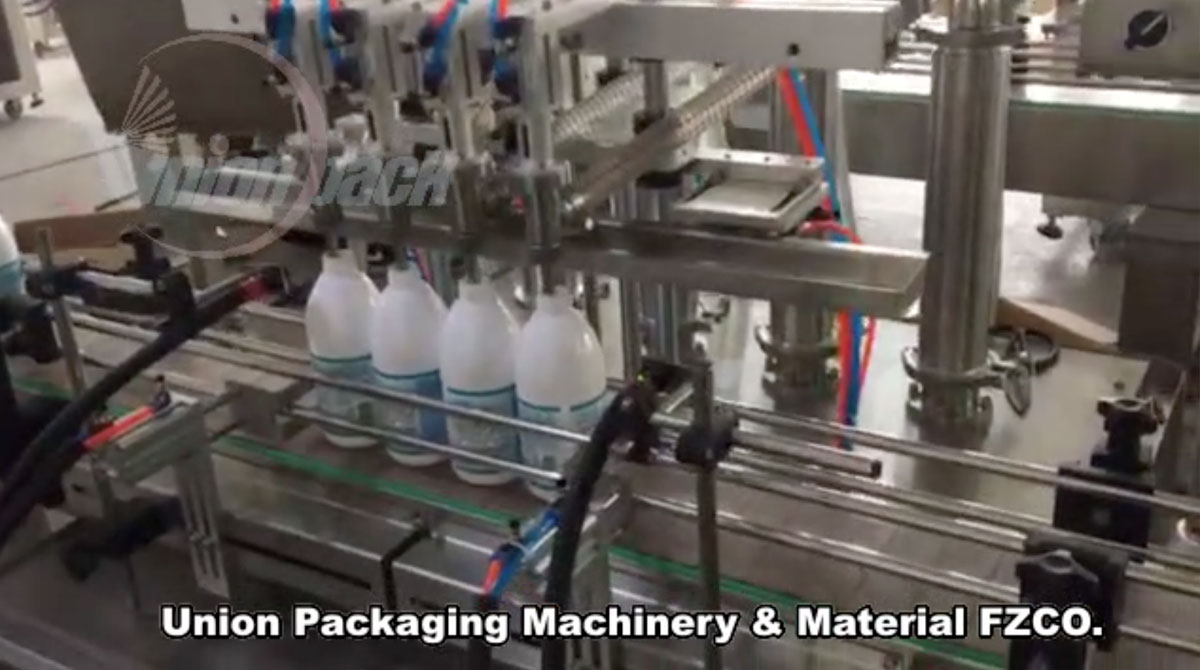

UPYG1000-4D AUTOMATIC LIQUID FILLING MACHINE (100-1000ml, 4-HEAD) + AUTOMATIC LINEAR CAPPING MACHINE

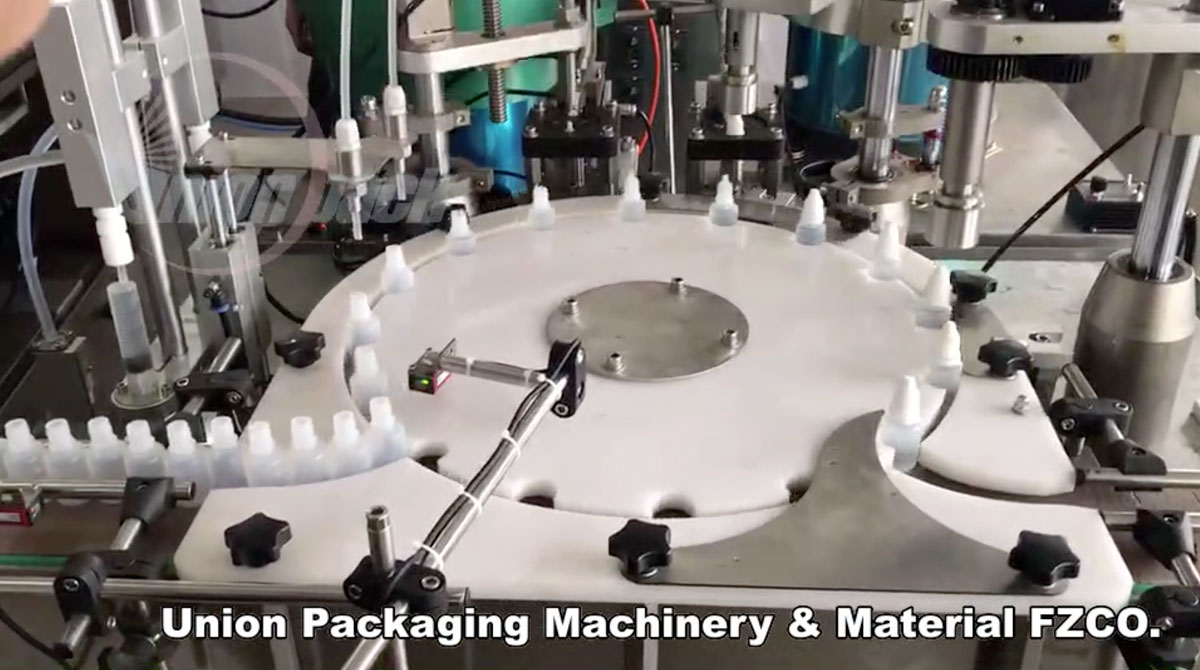

HIGH SPEED ROTARY FILLING & CAPPING MACHINE
APPLICATIONS
Widely used for daily chemical industry, oil field, beverage or food industry and so on. Suited for various kinds of liquid, paste, cream, stickiness, sauce or mixed paste with small grain.
TECHNICAL SPECIFICATION
For AUTOMATIC LIQUID / PASTE FILLING MACHINE
|
Model
|
UPYG1000-4D
|
|
Filling Speed
|
1000-1200bph
|
|
Hopper Volume
|
135L
|
|
Conveyor Length
|
2m
|
|
Air Pressure
|
0.6-0.8MPa
|
|
Power
|
400W, 220V, 50-60Hz
|
|
Dimension
|
2000X1050X1950mm
|
For HORIZONTAL LIQUID & PASTE FILLING MACHINE
|
Model
|
H1UPY/UPG
|
H2UPY/UPG
|
|
Optional Filling Volume (ml)
|
10-100, 30-300, 50-500, 100-1000, 200-1500, 300-2500, 1000-5000
|
|
Filling Speed
|
5-20bpm (UPY) 4-18bpm (UPG)
|
8-38bpm (UPY) 7-36bpm (UPG)
|
|
Air Pressure
|
0.4-0.6MPa
|
|
Power
|
20w
|
40w
|
|
Power
|
AC220V, 50-60Hz
|
AVAILABLE OPTIONS
For AUTOMATIC LIQUID / PASTE FILLING MACHINE
Optional Filling Volume:
30-100 / 30-300 / 50-500 / 100-1000 / 200-1500 / 300-2500 / 1000-5000ml
Optional Filling Nozzle Quantity:
2 / 4 / 6 / 8 / 10 / 12
