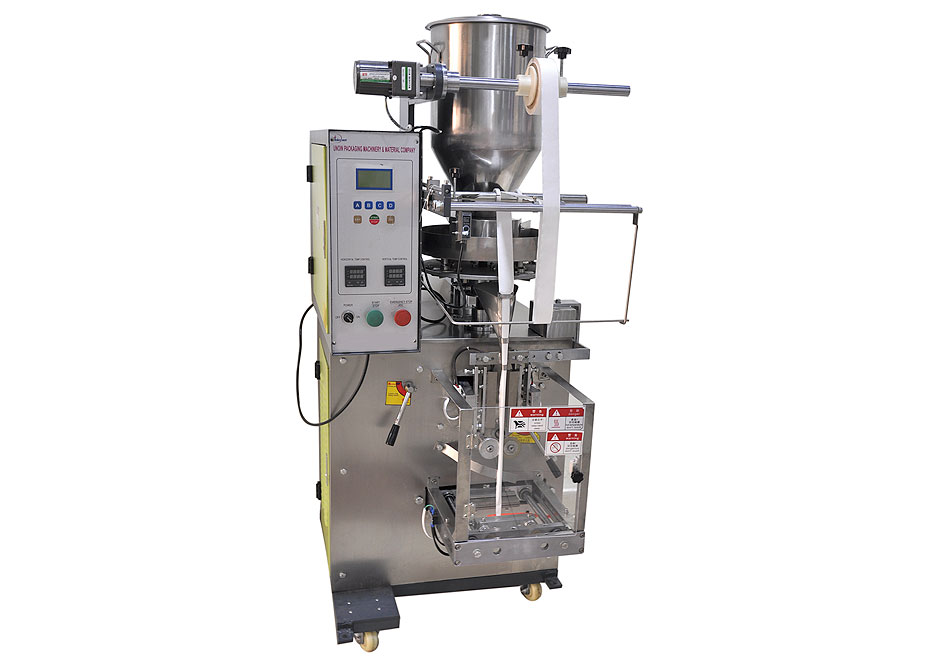

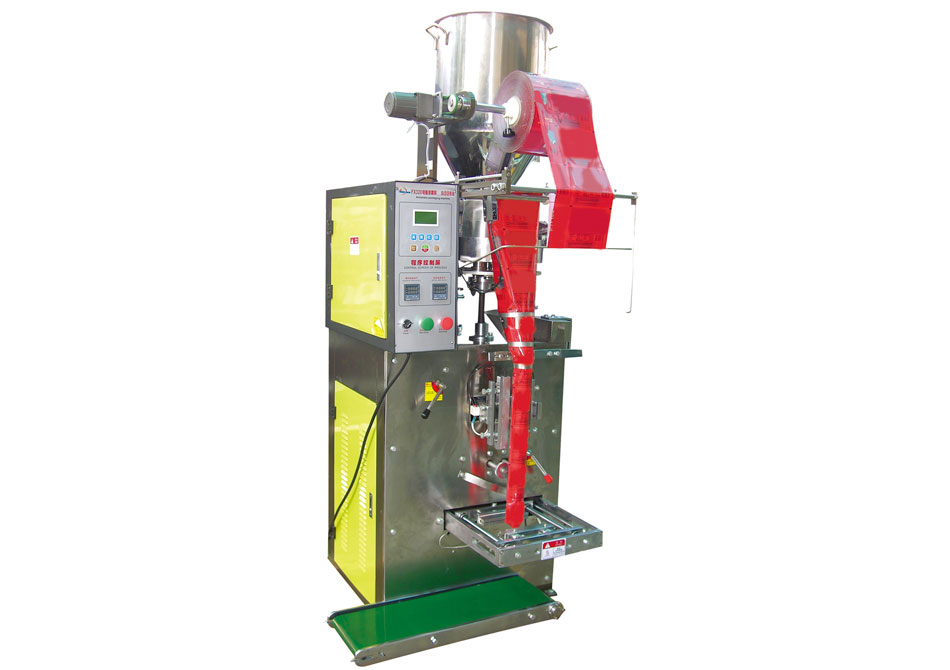

Grain Machine: The thin grain materials such as sugar, coffee, salt, pepper, juice powder, jelly powder, tea, nuts, peanuts, detergent powder, herb, seed, desiccant, fruit grain, medicine, etc.

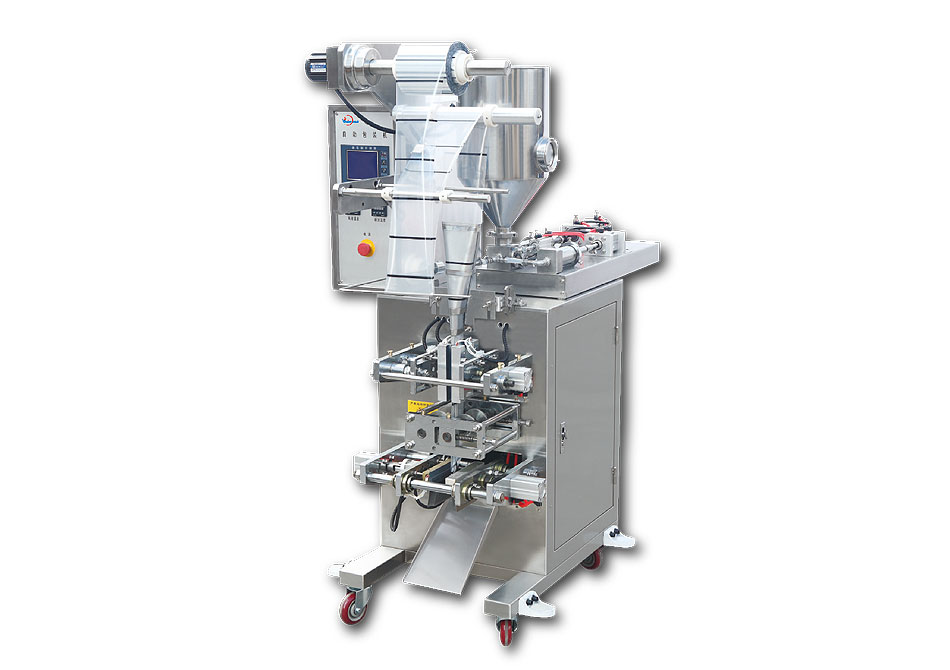

Liquid and Semi-liquid Machine: Ketchup, sauce, paste, shampoo, juice, honey, syrup, jam, pesticide, etc.

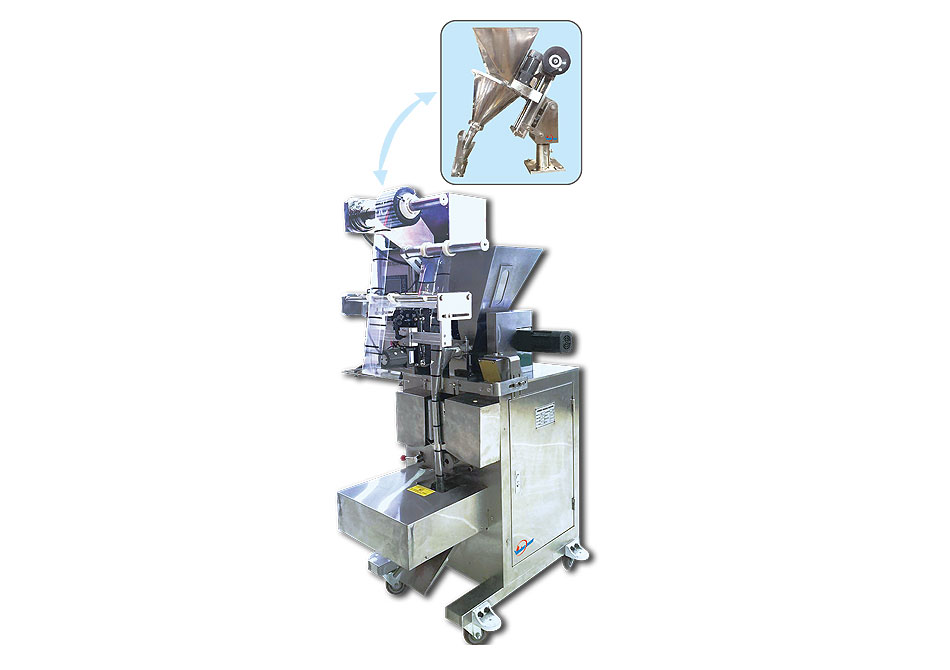

Powder Machine: Spices, milk powder, chili powder, bean powder, flour, pesticide powder, etc.
Tablet and Capsule Machine: Tablet & capsule for sweet or medicine, etc.

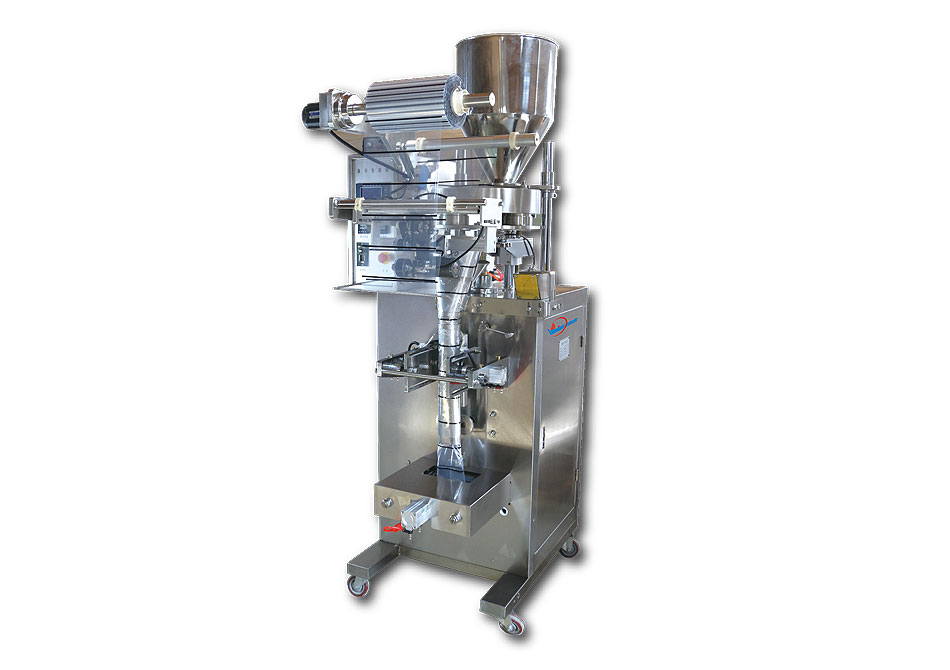

| Model | UP320K/F/Y/-II | UP360K/F/Y-II | UP400K/F/Y-II |
| Film Width | Max 320mm | Max 360mm | Max 400mm |
| Bag Size |
L: 30-210mm; W: 18-145mm |
L: 80-260mm; W: 70-160mm |
L: 100-300mm; W: 80-185mm |
| Speed | 30-60 bags/min | 20-50 bags/min | 15-50 bags/min |
| Capacity | 5-200ml | 100-500ml | 200-1100ml |
| Sealing Type |
3-side or 4-side or Pillow bag (Central Sealing) |
Pillow bag (Central Sealing) | |
| Power | 220V, 50-60Hz, 2.2kw | 220V, 50-60Hz, 2.8kw | 220V, 50-60Hz, 1.6kw |
| Weight | 300kg | 350kg | 480kg |
| Dimension | 950X700X1770mm | 1140X820X2230mm | 1200X1000X2300mm |
Note: For 1-5ml very small bag, we have UP180 machine available as well.
|

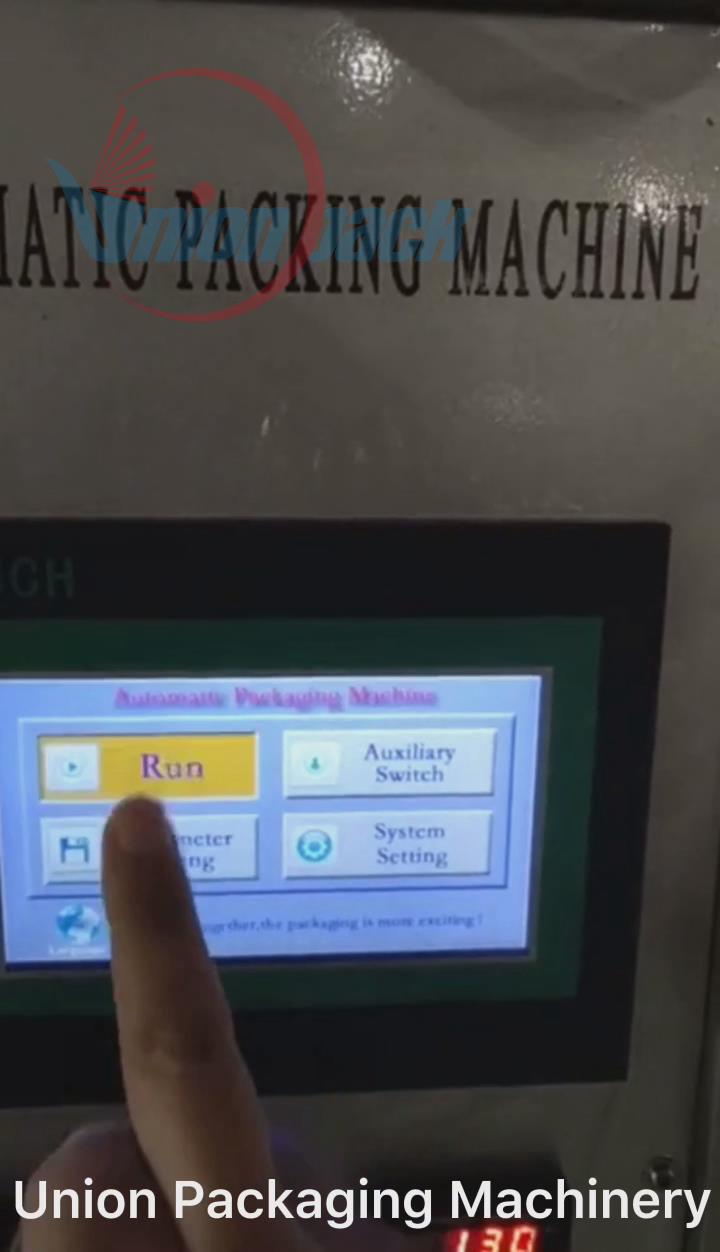

Computer control with LCD screen. |
Automatic tracking by photo-eye. |
|
Intellectualized switch-off and display what happen while having something wrong. |
|
|
The process of bag-making, measuring, filling, sealing, cutting are done automatically. |
|
Packaging Material:
Various kinds of Laminated Film, for example: PET/Aluminum Foil/PE, Paper/PE, PET/PE, OPP/MPET/PE, etc.
