STAND-UP POUCH PACKAGING MACHINERY

  • SLYB-I
  • SLYB-III
1
/

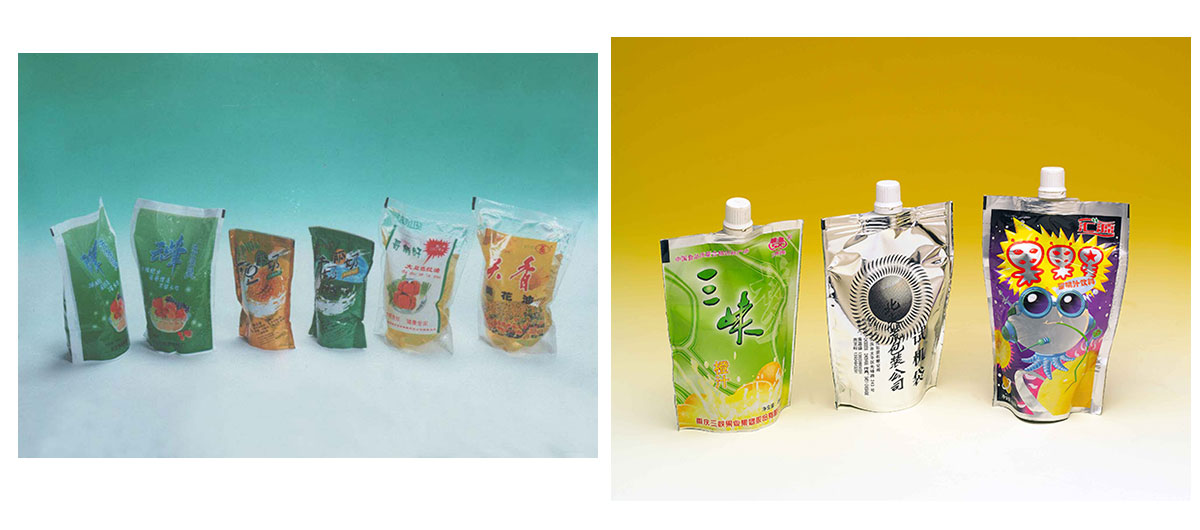

SAMPLES

APPLICATIONS

The machine can be applied for package of such varied liquid as juice, wine, edible oil, soy sauce, vinegar, non-carbonated drink, etc. With changing the material supplying system, it can be suited for jam, ketchup, paste and all kinds of semi-liquid.

TECHNICAL SPECIFICATION

Model Speed (bags/min) Filling Capacity (ml) Power (Kw) Weight (Kg) Dimension (mm)
SLYB-I 15-25 100-550 1.7 330 1450*930*2370
SLYB-II 15-25 550-1100 1.7 330 1450*930*2370
SLYB-III 12-18 100-550 2.0 400 3600*1045*2540

main feature

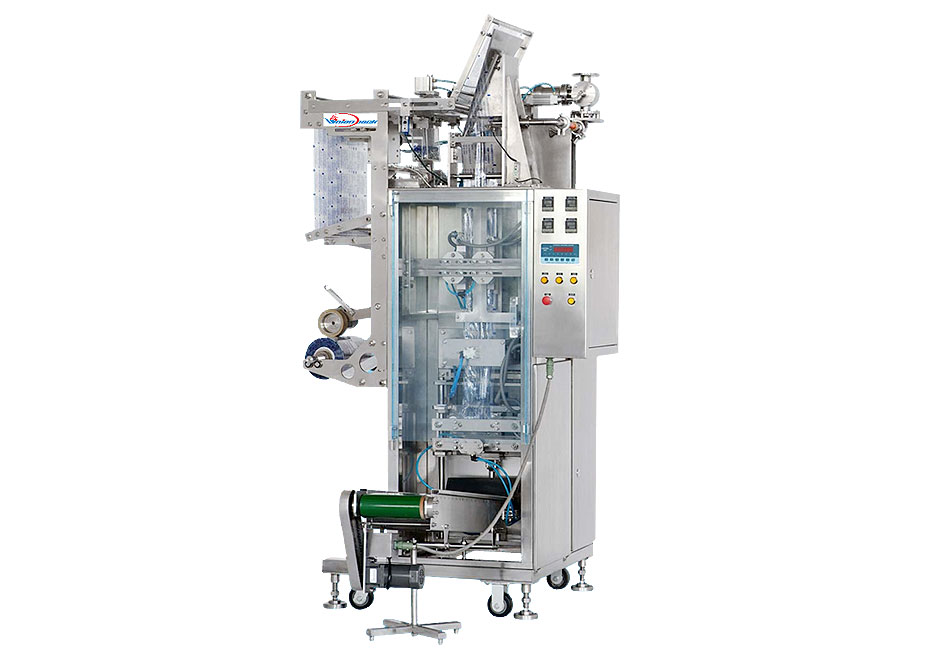

SLYB-I / II machine is special for packing stand-up pouch with pneumatic system.

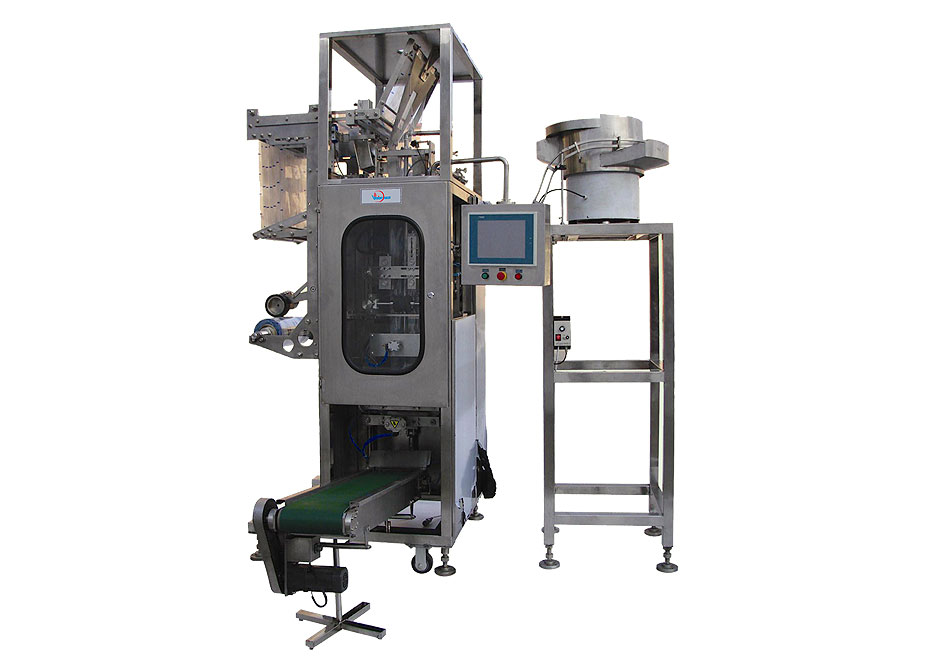

SLYB-III machine is also for stand-up pouch but with capping device and electromagnetic vibrator.

These machines can realize the forming, dosing, filling, sealing, cutting, date-printing by PLC controller.

The laminated film is suited such as PE/PA/PET, PE/PA, PE/PET, PE/AL/PET.
