AUTOMATIC L-BAR SEALING & SHRINK PACKAGING MACHINERY

  • UPL5545TA+UP4525
1
/

SAMPLES

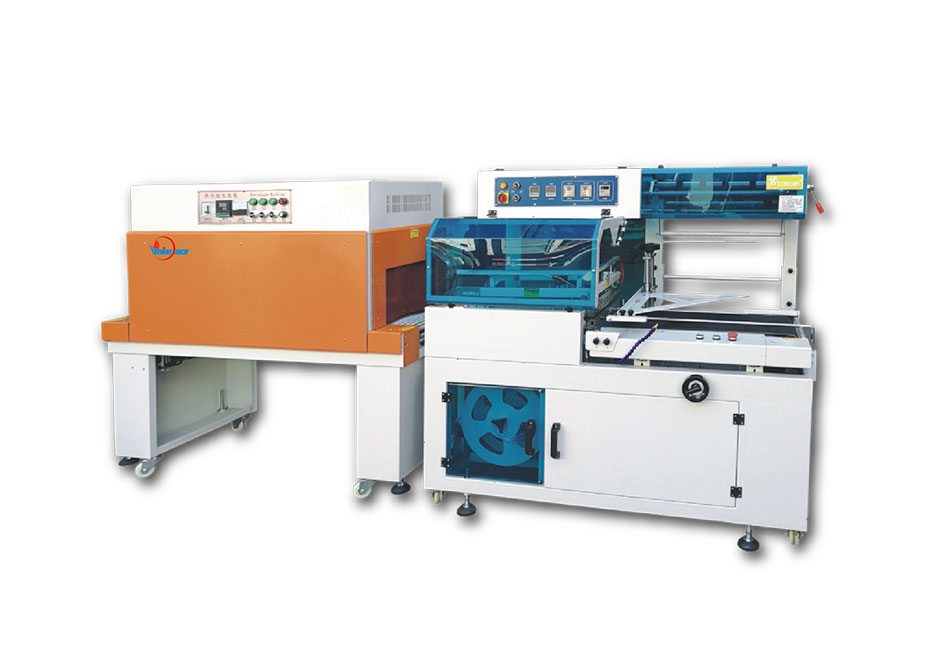

UPL5545TA+UP4525 AUTOMATIC L-BAR SEALING &SHRINK PACKAGING MACHINE

APPLICATIONS

Widely service for various light industries such as foodstuff & beverage, cosmetics, stationery, pharmacy, software, presswork, hardware, etc.

TECHNICAL SPECIFICATION

Model UPL5545TA UPL6560TA UP4525
Max Packaging Size
L×W×H(mm)
270X210X140 470X440X140 700×350×200
Packing Speed 1-30 pcs/min 0-15m/min
Net Weight (kg) 320 380 260
Machine Dimension
L×W×H(mm)
1760×900×1580 1940×1000×1480 1300×700×1465
Power (kw) 2.1 3 10
Power Supply 220V 50/60Hz 220V 50/60Hz
Air Pressure (kg/cm²) 6-8 /
Applicable Film POF

main feature

Hot knife sealing system with center sealing

Multi pin perforator wheel for air evacuation

Teflon coated sealing blade

Film rack-cradle roller style or film cores and shafts

Film rack side adjustable for perfect alignment of film rack and inverting head power film unwind

Film inverter for inline product feed with hand wheel for product adjustment

Omron digital temperature controller with PID function


Safety shut down switches


Able to pack single or multiple packages

Horizontal and vertical photocell for package detection
