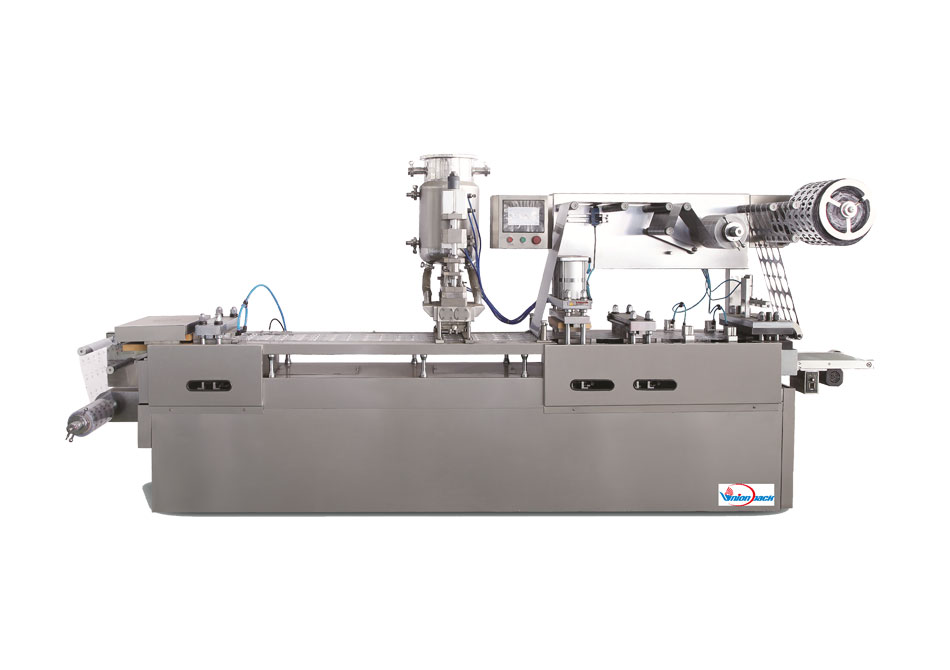

UPB-260H Automatic Blister Packing Machine

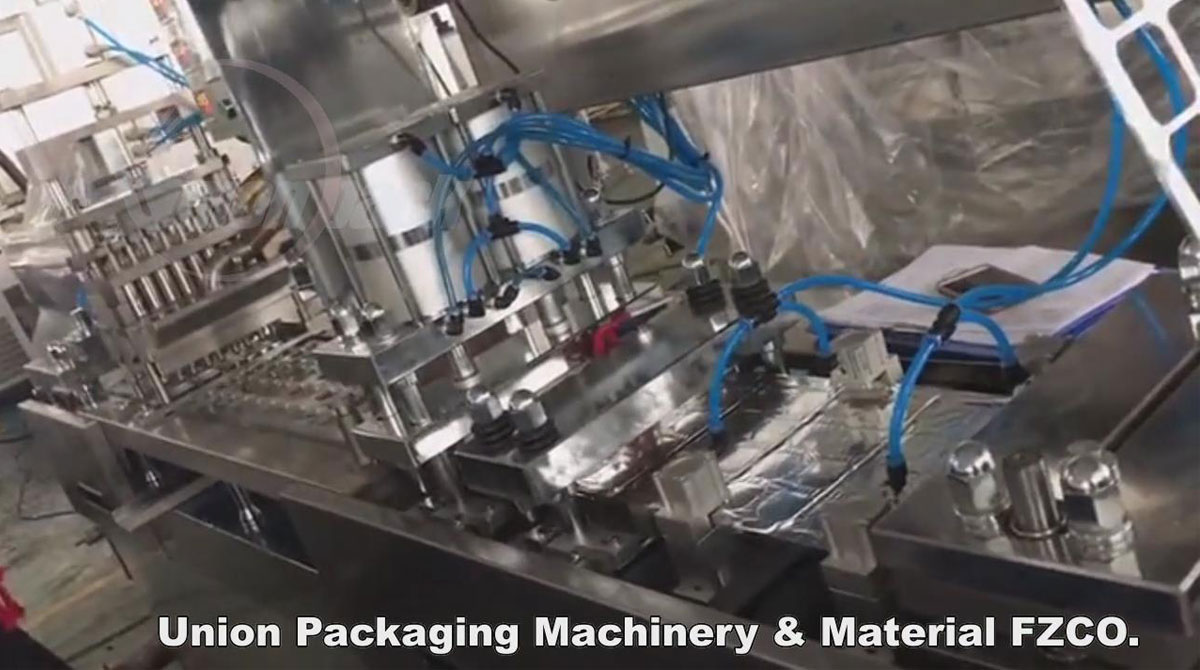

This machine is applied to blister filling and sealing packing of melted fruit jam, chocolate, cream and other foods. Full process is automatic, from blister forming to liquid filling, composite film sealing and punching to final products, which greatly reduces labor cost.


Punch frequency 20 times/min
Max Forming Depth Standard: 26mm;  Maximum: 40mm
Air Pressure 0.5-0.7mpa; 0.2m³/min
Power 380/220v 50-60Hz 6kw
Main Motor Power 10kw
Material Type PVC PET PS composite film aluminum foil
Material Width 260mm
Mold Cooling By tap water or recycled water
Overall Dimension 2710*720*1600mm
Weight 2000kg

main feature

Adopt full set of Mitsubishi HMI, PLC and servo control system. With easier operation, higher precision and lower failure rate.

Optical tracking system adopt imported three color sensor, which can sense all colors and output strong signal. Make sure to use color film, which can align with bottom film’s forming area.

Feeder adopts stainless steel 316, with jacket layer for heating function, and with removable piston for easy cleaning.

With safety cover made of food-grade 304/2B stainless steel and aluminum.

Pneumatic parts adopt original AirTac solenoid valves and cylinders.

Optional with coding system.
